Managed PoE Switch

Managed PoE Switch

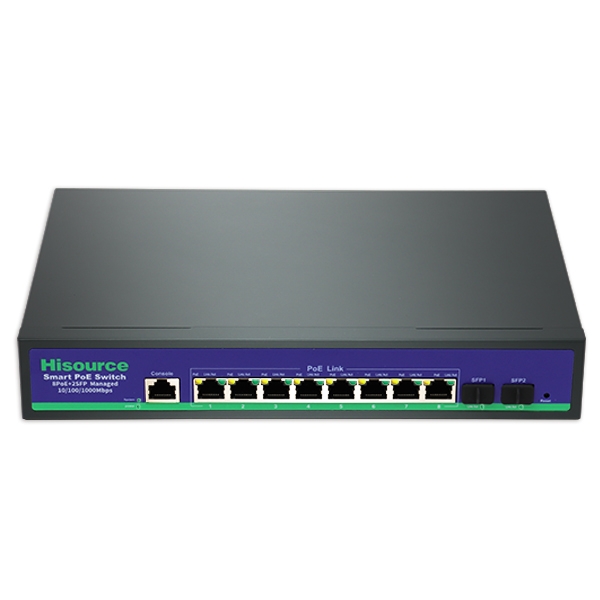

Active 8+2 Full Gigabyte Managed POE Switch

8*10/100/1000Mbps RJ45 portsupport POE+

2*1000Mbps SFP uplink port

1*Console RJ45 port

Supply 802.1QVLAN, port VLAN, QoS, bandwidth control and storm control

Supply port trunk, port mirroring, port monitoring, cable detection and loopback protection.

Supply web management, VLAN and standard switching.

    Hi-G0802GBM series POE switch is specially designed to meet the demand of PoE power supply, which adopts new generation of high-performance hardware and software platform to provide flexible and cost-effective full gigabit access and uplink ports, support complete security protection mechanism, perfect QoS policy and flexible VLAN function, easy to manage and maintain, and meet the user‘s demand for easy network equipment management, high security and low cost networking. It is suitable for campus, hotel and enterprise campus network access and convergence in various application scenarios.

    Hardware Specification

    Model

    Hi-G0802GBM

    Support Criteria

    IEEE 802.3,802.3u802.3x,802.3af/at,CSMA/CD,TCP/IP

    Port

    8*10/100/1000Mbps Adaptive portsupport POE function2*1000Mbps SFP port1*Console port

    Basic Function

    Compatible with IEEE 802.3AF/AT compliant Powered Devices (PD)

    Port power priority feature

    Wire-speed forwarding

    MAC self-learning and aging

    IEEE802.3X Full-duplex and backpressure for half-duplex mode

    Backplane bandwidth

    20Gbps

    MAC Addresses List

    8K

    Forwarding method

    Store and forward

    Forwarding

    rate

    10BASE-T:14880PPS/port

    100BASE-T:148800PPS/port

    1000BASE-T:1488000PPS/port

    LED indicator

    Power, SYS, Link/Act:10/100/1000Mbps, POE

    Environment

    Operating Temperature-10℃ - -55℃

    Power

    Built in power base board

    Input220V50HZOutputDC52V±5%2.3A

    Whole power120W

    Weight &Size

    1KG

    270mm×180mm×44mm(L×W×H)

    Software Specification

    Port Management

    Enable/Disable port

    Speed, duplex, MTU setting

    Flow-control setting

    Port information view

    Port Mirroring

    Support port and aggregation group access direction

    Port Speed Limiting

    Support port speed limit, the granularity of the speed limit is determined by the chip

    Port Isolation

    Support port isolation setting

    Storm control

    Support location unicast, unknown multicast, broadcast storm control

    Link Aggregation

    Support static manual aggregation, support VLACP dynamic aggregation

    VLAN

    Access/Trunk/Hybrid

    Support VLAN division based on port, protocol and MAC, support QINQ

    Support GVRP dynamic VLAN registration

    Voice VLAN (support required)

    MAC

    Support static add and delete

    MAC address learning quantity limit

    Support dynamic aging time setting

    Spanning Tree

    Support 802.1dSTP; Support IGMP-snooping

    Support 802.1SMSTP

    Multicasting

    Support static add and deleteSupport IGMP-snooping

    Support MLD-snoopingSupport V1/2/3 dynamic multicast snooping

    DDM

    Support SFP/SFP+DDM

    ACL

    Based on source MAC, destination MAC, protocol type, source IP, destination IP, L4 port number

    QOS

    Classification based on 802.1P (COS); classification based on DSCP.

    Classification based on source IP, destination IP, port number; support for SP, WRR scheduling policies.

    Support traffic speed limit CAR

    LLDP

    Support LLDP link discovery protocol

    User Setting

    Add/Remove Users

    Log

    User login, operation, status, event record log

    Anti-attack

    DOS Defense

    Support for CPU protection, limiting the rate of upgoing CPU messages

    ARP binding (IP, MAC, PORT binding)

    Certification

    Support 802.1X port authentication; support AAA authentication

    Network Diagnosis

    Support pingtelnettrace

    System Administration

    Device reset, configuration save/revert, upgrade management, time setting, etc.

    Management Function

    CLI

    Support serial port command line management

    TELNET

    Support telnet remote management

    SSH

    Support SSHV1/2 remote management

    SNMP

    Support V1/2/3

    Support trap: cold start, warm start, link down and link up

    Web

    Support two levels of settings, two or three levels of view

    RMON

    Support RMONV1

    POE Configuration

    POE configuration, POE scheduling management, etc.
